TOPIC: New Models for 2020

20mm EDF DH Vampire build 6 days 19 hours ago #1179

  • nitrocharged
  • nitrocharged's Avatar
  • Offline
  • Administrator
  • Administrator
  • Posts: 24
  • Thank you received: 9
I usually like to post in one thread to keep all the information together but since this thread is so active I thought I would join in the fun!
After the success of my DH Swallow, 'someone' suggested the DH Vampire would make a great follow up build. I accepted the suggestion and got to it with a plan provided by same. It wasn't a complete plan - more of an unfinished project so I got to drawing up the missing pieces and did a test build to see if my CAD skills were up to it and accurate enough. Luckily, eveything went fine and the parts fit together perfectly so the test wing I made will now be the right wing and I will continue the build. :)

The wingspan is 17" so I hope for another pocket rocket, much to the dismay of those whom have a hard time tracking such a small model no doubt.

Here is the wing half ready for final sanding, which I will do later into the build.



Roger adds: this is great inspirational stuff ... after Dave has finished his Vampire, I have a Hawker Hunter for him to try. That might slow him down a bit!:cheer:
Attachments:
The following user(s) said Thank You: rogersimmonds

Please Log in or Create an account to join the conversation.

Last Edit: by rogersimmonds.

20mm EDF DH Vampire build 5 days 16 hours ago #1181

  • rogersimmonds
  • rogersimmonds's Avatar Topic Author
  • Offline
  • Administrator
  • Administrator
  • Posts: 307
  • Karma: 3
  • Thank you received: 46

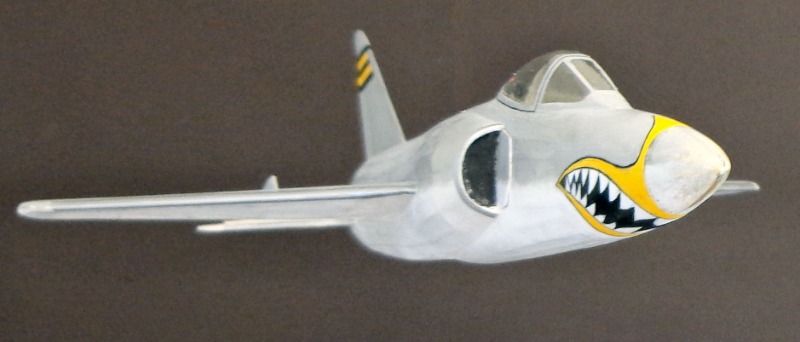

There are times - a few times- when OCD is an advantage: adding detail to your latest jet is definitely one of them. Armed with a selection of fine acrylic-friendly brushes (thank you Ruth) and my magnifying visor on my head I painted the Tiger's shark teeth motif. I was not too displeased with the result, but I have made a vow: NEVER AGAIN!





Above: perhaps decals would have been a better way of doing this, but the curves are a barrier to getting a smooth result. This isn't too bad, but I can now see where the 'stand off' scale guys are coming from. :dry:

All the other decoration - letters, numbers, insignia etc. will be decals, which means a couple of days in front of the computer doing things with Paint Shop Pro 9. Oh joy!!! :woohoo:

The next model will, for sure, be something from The Vintage Model Company - they do include a set of decals/transfers in the box, don't they? :unsure:
Attachments:

Please Log in or Create an account to join the conversation.

Last Edit: by rogersimmonds.

20mm EDF DH Vampire build 5 days 13 hours ago #1182

  • rodger.wright80@gmail.com
  • rodger.wright80@gmail.com's Avatar
  • Offline
  • New Member
  • New Member
  • Posts: 9
  • Thank you received: 6
Beautiful work Roger! Hope she flies as well as she looks!

Please Log in or Create an account to join the conversation.

20mm EDF DH Vampire build 4 days 45 minutes ago #1183

  • ahmetcalfe
  • ahmetcalfe's Avatar
  • Offline
  • Administrator
  • Administrator
  • Posts: 172
  • Thank you received: 69
Looking very good, I did a shark's mouth on a Guillows P40 back in the 70's by hand too, tedious but well worth the effort.

Please Log in or Create an account to join the conversation.

New Models for 2020 3 days 23 hours ago #1184

  • ahmetcalfe
  • ahmetcalfe's Avatar
  • Offline
  • Administrator
  • Administrator
  • Posts: 172
  • Thank you received: 69
Frisk film is (or maybe was!) a masking medium for airbrushing, a low tack easy to cut self adhesive film, as I am 'old school' it has probably been replaced by something more modern. I have often used the adhesive portion of a 'sticky note' instead as it is quite convenient for small jobs.

Please Log in or Create an account to join the conversation.

New Models for 2020 6 hours 22 minutes ago #1188

  • nitrocharged
  • nitrocharged's Avatar
  • Offline
  • Administrator
  • Administrator
  • Posts: 24
  • Thank you received: 9
Thought I would add some structural strength to the Vampire while simplifying constructing the ducting.
0.4mm wall thickness. In the printer now. Only 5 hours left.... :S :S

Attachments:
